Info
- 4 x 6,5″/3 x 1″, Column Line Array self-powered Version
- 2-channel 3,2 kW ampmodul: 1 x 2,400 W + 1 x 800 W at 4 Ω
- Click-in flyware, tool-free flight mechanics
- Dual-tilt stand flange 0° und 5°
- Manual control via display, push-button and encoder
- Software control via Dante (Digital Audio Network Through Ethernet)
- 120 internal Presets
- 1 x 6 m Schuko/powerCON TRUE1-TOP cable
Integrated 2CH Amplifier Modul
Amplifier
3rd Generation Class D
Power output CH1
2.400 W/4 Ω, 1.580 W/8 Ω, 800 W/16 Ω
Power output CH2
800 W/4 Ω, 450 W/8 Ω, 200 W/16 Ω
Amplifier gain
LF: 32 db, HF: 26 db
Signal-to-noise ratio
>120 db (A-rated, 20 – 20.000 Hz, 8 Ω)
Damping factor
>1.000 (8 Ω, 1 kHz)
Distortion
THD+N < 0,05 % (20 – 20.000 Hz, 8 Ω)
Protection
Start-up current limiting (soft start)
Protection circuit on and off transients
Under and over voltage protection
DC protection of outputs
Input limiter, peak limiter
Temperature monitoring of the heatsink and transistors
Voltage
Intelligent and regulated switching power supply with automatic voltage detection
Switching between 120/230 V 50/60 Hz, worldwide use
Voltage range: from 85 – 268 V
Integrated DSP Loudspeaker Management System
Prozessor
64 bit, 96 kHz sample rate
Controllable units about software
Up to 128 self-powered loudspeaker and HDSP-Amplifiers in one network
Dynamic range input
120 db
Input level Nominal / Maximal
+ 6 dBu / + 23 db
Latency
0 – max. 0,5 ms
Routing
2 input mixers allow flexible routing to each output
EQ Filter
20 parametric EQ filters per path
each filter can be set as Bell, Shelving, Notch, or Allpass Filter
X-Over
Butterworth, Bessel, Linkwitz-Riley
Limiter
Per input and output
Delay
0 up to 800 ms (max. 275 m delay) in each input for the user
0 up to 17 ms (max. 6 m delay) per output for time alignment between the acoustic centers
Phase
Infinitely adjustable from 0° – 180°
Operable language
English, German, France, Spain
Software interfaces
Software update via Ethernet
The Voice-Acoustic VENIA-6sp DDA is a passive selfpowered 2-way column line array loudspeaker, equipped with 4 x 6.5″ drivers, 3 x 1″ compression drivers and internal 3.2 kW power amplifier module and the DSP loudspeaker management system with extensive features. The DSP has high computing power and all the standard controller functions.
DDA stands for a new generation of DSP and input boards that can process a variety of signals: DANTE, Digital AES/EBU, AES67 and analog inputs. The signals can be looped further.
The high-frequency drivers are coupled to a line array waveguide and produce a dispersion angle of 100° horizontally and 0°/-20° vertically via a large horn.
The HF section of the VENIA series provides a vertically asymmetrical sound pressure coverage with a plane wavefront. The principle of larger line arrays is transferred to the VENIA loudspeakers in a compact column format: the high-frequency energy is bundled to cover longer distances and the near filed is covered by curving with a lower energy content distributed to a larger area. The result is a very balanced level distribution across the entire listening area with very homogeneous sound distribution. This gives VENIA-6 an enormous advantage as a single loudspeaker and is also easier and faster to set up and commission than conventional line array systems.
Energy coverage VENIA Series: Very even volume coverage from front to back
Energy coverage conventional loudspeaker: Loud at the front and quiet at the back

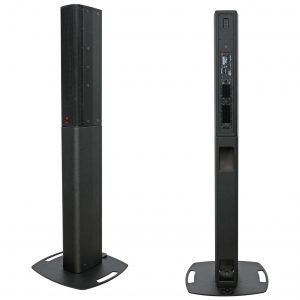

With its slim appearance, the VENIA series makes a valuable appearance in all mobile applications and in fixed installations. The beautifully curved front grille with discreet mini-honeycomb perforation and large R50 side radii makes the loudspeaker look very elegant and integrate discretely even in architecturally sophisticated surroundings. With the optional X-Tension, a designer stand with the same enclosure format, the VENIA-6 becomes a design sculpture and can be raised to a visually appealing height. A steel base plate is available to ensure that the X-Tension stands securely. In addition, the X-Tension can be mounted on any subwoofer with an M20 flange.
With its low crossover frequency, the VENIA-6 is also a convincing full-range stand-alone solution. With its powerful performance, it is also an elegant Main-PA in combination with several subwoofers. A stereo pair of VENIA-6s can be combined with up to six Paveosub-118. Thanks to the powerful high-frequency driver unit, the VENIA-6 always plays in a relaxed and pleasant manner, even at high volumes, and meets even the highest sonic demands.
The VENIA-6’s sophisticated detail solutions and extensive range of accessories allow for a wide variety of applications and installations. The integrated pole mount, the tool-free mountable Voice-Acoustic Easyfly mechanism, or the U- and C-bracket and various M10 mounting points leave nothing to be desired. For best handling in mobile operation, up to 11 u-shaped handles can be mounted vertically and horizontally on the rear. A safety cable for secondary safety can be attached with a single-stud. Two VENIA loudspeakers can be operated in head stacking configuration, which extends the range of applications.
Like the other Voice-Acoustic loudspeakers, the housing is made of sturdy birch plywood of highest quality: CNC milled, grooved, screwed and waterproof glued. The surface is protected by a stable and moisture-resistant polyurea coating in black. White speakers and special colours with 2K textured paint are optional available. The Voice-Acoustic VENIA series sets a new standard in performance and design for high-performance column line array loudspeakers.
Control
A VENIA-6sp DDA can power a VENIA-6 via a 4-pin cable.
The woofer and compression driver is in 8 Ω.
