Technical Data
LA-Stick 4×4
Speaker drivers
4 x 4″ Neodym wideband transducer with 0,75″ voice coil, waterproof
System
Line array stick
Frequency range
161 Hz – 18 kHz (- 10 dB)
210 Hz – 15,4 kHz (+/- 3 dB)
Coverage range (h x v)
70° horizontal, vertical directivity is controlled by the angle between the elements
Impedance
16 Ω
Powerhandling 16 Ω
120 W AES / 240 W programm / 480 W peak
Sensitivity dB SPL 1 W/1 m
96 dB SPL
Sound pressure at (AES / programm / peak)
116 dB SPL / 119 dB SPL / 122 dB SPL
Connectors
2 x Neutrik NL4 Speakon IN/OUT (loop through), configuration: 1+/1-
Mounting
Flying vertical by clickable mechanics and perforated rail for setting up emphasis
Several elements among each other connect- and adjustable rear threaded mechanics (without any help of tools)
2 x M6 rear bolt-flange mounting for stand and distance rod operation
Bolt-flange mounting 1 x M10 for tripod mounting poles and operating on the bottom
Tilt adapter in various angle, instead of rear threaded mechanics
Swivel bracket with raster for the fitting on the floor
Swivel bracket with raster for top spots on bass and fixation in M20 flange
Housing
15 and 12 mm birch plywood CNC machine-splined and bolted
Finish
Water based textured black lacquer RAL 9005, 2 coats of varnish. Surface can be repaired and restored
As an Option, other surface colors according to RAL-tones can be provided in a matter of days.
Front grille
Galvanized and powdered black honeycomb grille RAL 9005, 5 mm acoustic foam behind grille, front logo
RAL-tones are available as an option to the standard color as well as chrome, and, with or without foam
For ‘No-branding’ installations, the logo on the front grille can be removed without leaving any visible marks
Dimensions / Weight
419 (h) x 119 (w) x 160 mm (d) / 3,2 kg
Paveosub-112sp
Speaker drivers
1 x 12″ Neodym long excursion woofer (LF) with 4″ voice coil, cone waterproof treatment
System
compact and flat bass reflex subwoofer
Lower cut-off frequency
35 Hz (- 10 dB)
41 Hz (- 3 dB)
Coverage range (h x v)
Omnidirectional
Impedance
8 Ω active separated
Powerhandling LF 8 Ω
1.000 W AES, 2.000 W programm, 4.000 W peak
Sensitivity dB SPL 1 W/1 m
96 dB SPL (half space)
Sound pressure at (AES / programm / peak)
126 dB SPL / 129 dB SPL / 132 dB SPL
Connectors
2 x Neutrik NL4 Speakon IN/OUT, 2+/- LF
Handles
2 x shell type handle
Foot
8, each 4 x on a flat and narrow side with opposite stacking trays
Fittings
2 x M20 pole mount
2 x latches on the front for detachable wheelboard
Housing
30 and 15 mm birch plywood CNC machine-splined and bolted
Finish
Water based textured black lacquer RAL 9005, 2 coats of varnish. Surface can be repaired and restored
As an Option, other surface colors according to RAL-tones can be provided in a matter of days
Front grille
Galvanized and powdered black honeycomb grille RAL 9005, 10 mm acoustic foam behind grille, front logo
RAL-tones are available as an option to the standard color as well as chrome, and, with or without foam
For ‘No-branding’ installations, the logo on the front grille can be removed without leaving any visible marks
Dimensions / Weight
300 (h) x 520 (w) x 485 mm (d) / 28,8 kg
Integrated 3-Way Amplifier Modul
Amplifier
3rd Generation Class D
Power output CH1
2.400 W/4 Ω, 1.580 W/8 Ω, 800 W/16 Ω
Power output CH2 and CH3
800 W/4 Ω, 450 W/8 Ω, 200 W/16 Ω
Amplifier gain
CH1 32 dB, CH2/3 26 dB
Signal-to-noise ratio
> 120 dB (20 – 20.000 Hz, 8 Ω)
Damping factor
> 1.000 (8 Ω, 1 kHz)
Distortion
THD+N < 0,05 % (20 – 20.000 Hz, 8 Ω)
Protection
Input limiter, peak limiter
Start-up current limiting (soft start)
Protection circuit on and off transients
Under and over-voltage protection
DC-protection of outputs
Temperature monitoring of the heatsink and transistors
Voltage
Intelligent PFC wide-range power supply with soft start and automatic voltage selection:
85 – 135 V = 110 / 115 / 120 V Betrieb, 190 – 265 V = 220 / 230 / 240 V Betrieb, 50/60 Hz
Integrated Loudspeaker Management System (DSP-Board)
Manual hand operation
2 button and 1 x digital encoder-wheel for the internal menu navigation, function lockable
Operable language
Selectable between English, German, France, Spain
Softwareconnection, bi-directional
USB, Ethernet
Controllable units about software
Up to 128 self-powered loudspeaker and HDSP-amplifier in one network
Realtime software-monitoring for PC and MAC
Loudspeaker impedance measuring from each output channel (line-control)
Temperature measuring from the ampmodule
Real time meterbridge on PC per channel
Real time access for configuration
Speaker group building for access multiple speakers with one command
Display with software dimmable and switchable out
Standby switchable
Konfiguration und real-time monitoring über VA-WLAN Remotesoftware für PC und Mac
DSP preset memory quantity
80 Presets
Processor
64 bit, 96 kHz sample rate
Dynamic range input
120 dB
Maximum input level
+ 23 dB
Latency
0 – max. 500 microsecond
Routing
2-input signals can mix together in one loudspeaker
EQ filter
10 parametric filter each in- and output (20), use as Bell, Shelving, Notch, or Allpass filter
X-Over
Butterworth, Bessel, Linkwitz-Riley
Limiter
In each input and output, the user have no access on the ouput limiter (components protection)
Long delay section
0 up to 800 ms (max. 275 m delay) in each input for the user
Short delay section
0 up to 17 ms (max. 6 m delay) per output for time alignment between the acoustic centers
Phase adjustment
0 – 180°
Info

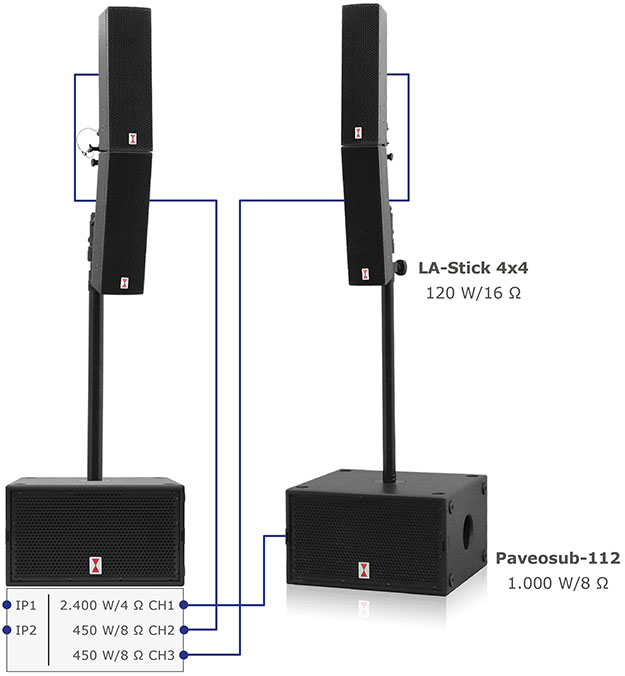

The SubSat-LAsp Set consist of one Paveosub-112sp with 4.000 Watt amplifier module and integrated loudspeaker management system (DSP), one Paveosub 112 and four LA-Sticks 4×4. The system is ‘Plug and Play’. Plug it in, and it is ready for use. All components are matched, adjusted and limited via the integrated speaker management system (DSP). The sound is synchronised right away, without having to make further adjustments.
Experienced technicians and professional audio operator can still alter the functions and have access capabilities to the DSP settings. Access to almost all parameters without PC control can be made using the Display buttons and encoder wheel. The functions can be password protected obviating unauthorized interference. Complex configurations can be comfortably created via the Ethernet, or an integrated bi-directional wireless interface on the PC surface, using the VA-WLAN remote software for PC and Mac. Individual sound ideas and alterations can be saved as presets and recalled at any time.
The possibility of splitting, extension, scaling, ease of use and comprehensive, well thought out accessories complete the SubSat-LAsp Set and make it a universal PA tool with a very wide range of applications.
