Technical Data
HDSP-3
Quantity channel
3 CH, class-D latest generation
Power output 4 Ω
4.000 W (1 x 2.400 W + 2 x 800 W)
Power output 8 Ω
2.480 W (1 x 1.580 W+ 2 x 450 W)
Power output 16 Ω
1.200 W (1 x 800 W+ 2 x 200 W)
Damping factor
> 1000 / 8 Ω, 1 kHz
Frequency responce
20 – 20.000 Hz
THD+N
< 0,05 % (20 – 20.000 Hz with 8 Ω)
Signal-to-noise ratio
> 118 dB (20 – 20.000 Hz with 8 Ω)
Voltage
Intelligent PFC wide-range power supply with soft start and automatic voltage selection:
85 – 135 V = 110 / 115 / 120 V Betrieb, 190 – 265 V = 220 / 230 / 240 V Betrieb, 50/60 Hz
Powerconnector
1 x 16 A Neutrik PowerCon IN
Signal connection analog INPUT/LINK
2 x XLR female/male
Speaker Connections
2 x Speakon
Network connection
1 x Additional rear RJ45 socket for wired network in fixed installations
Cooling
2 x temperature-controlled EBM-Papst low noise axial fan, air flow front to back
Protection
Input limiter, peak limiter
Start-up current limiting (soft start)
Protection circuit on and off transients
Under and over-voltage protection
DC-protection of outputs
Temperature monitoring of the heatsink and transistors
Realtime software-monitoring
Loudspeaker impedance measuring from each output channel (line-control)
Temperature measuring from each ampmodule
Real time meterbridge on PC per channel
Real time access for configuration on each channel
Speaker group building for access multiple speakers with one command
DSP sampling
64 bit, 96 kHz sample rate
DSP preset memory quantity
80 preset locations
Latency
0 – max. 500 microsecond
Dynamic range input
120 db
Nominal input level
+ 6 dbu
Maximum input level
+ 23 dbu
Limiter
Two per way, in each input and output
Filter
10 parametric filter each in- and output, use as Bell, Shelving, Notch, or Allpass filter
Long delay section
0 – 800 ms (max. 275 m delay) in each input
Short delay section
0 up to 17 ms (max. 6 m delay) per output for time alignment between the acoustic centers
Phase adjustment
0 – 180°
X-Over
Butterworth, Bessel, Linkwitz-Riley Filter
Software
Bi-directional realtime VA-WLAN-remote network, software for PC and MAC
Manual hand operation
with 2 x button and 1 x digital encoder-wheel in the internal menu navigation, function lockable
Display
1 x LED display
1 x LCD display with software dimmable and switchable
Body housing
19″/2 HE, 430 mm deep, strong black colored aluminum housing
Weight
4,1 kg
Info

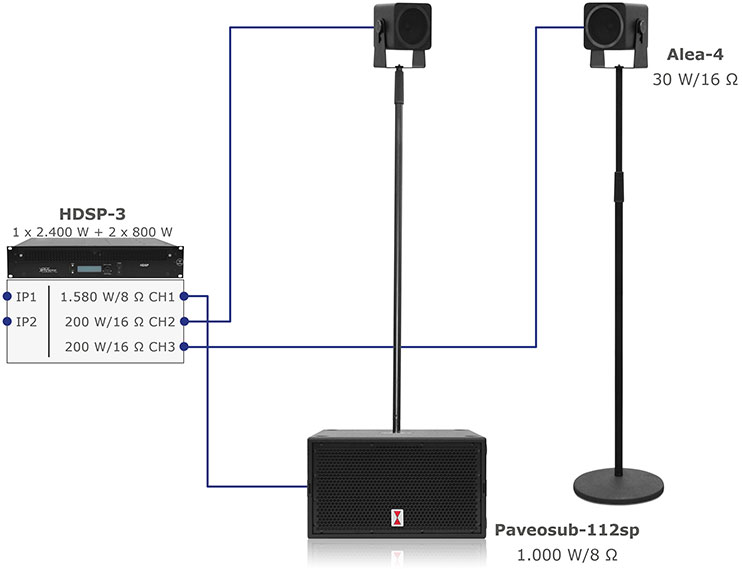

The HDSP-3 system power amplifier is the heart of the SubSat-4 Plug & Play Satellite System. The system is ‘Plug and Play’. Plug it in, and it is ready for use. All components are matched, adjusted and limited via the integrated speaker management system (DSP). The sound is synchronised right away, without having to make further adjustments.
Experienced technicians and professional audio operator can still alter the functions and have access capabilities to the DSP settings. Access to almost all parameters without PC control can be made using the Display buttons and encoder wheel. The functions can be password protected obviating unauthorized interference. Complex configurations can be comfortably created via the Ethernet, or an integrated bi-directional wireless interface on the PC surface, using the VA-WLAN remote software for PC and Mac. Individual sound ideas and alterations can be saved as presets and recalled at any time.
The aesthetic design of the Alea-4 compact loudspeaker captivates with its high level of efficiency and linear frequency response, all packed into the smallest box dimensions. It is perfectly suited to various sound reinforcement applications, as a main or fill system. Its compact appearance allows it to be integrated into just about every stage scene.
The next generation lightweight 4″ neodymium wideband transducer is water resistant. The Alea-4 can also be utilized in high moisture areas and even temporary exposure to rain. Connection is achieved with two Neutrik Speakons in addition to a parallel 4 pole Phoenix contact connector.
The possibility of splitting, extension, scaling, ease of use and comprehensive, well thought out accessories complete the SubSat-4 Set and make it a universal PA tool with a very wide range of applications.
