Technical Data
HDSP-3 Amplifier
Quantity channel
3 CH, class-D latest generation
Power output 4 Ω
4.000 W (1 x 2.400 W + 2 x 800 W)
Power output 8 Ω
2.480 W (1 x 1.580 W+ 2 x 450 W)
Power output 16 Ω
1.200 W (1 x 800 W+ 2 x 200 W)
Damping factor
> 1000 / 8 Ω, 1 kHz
Frequency responce
20 – 20.000 Hz
THD+N
< 0,05 % (20 – 20.000 Hz with 8 Ω)
Signal-to-noise ratio
> 118 dB (20 – 20.000 Hz with 8 Ω)
Voltage
Intelligent PFC wide-range power supply with soft start and automatic voltage selection:
85 – 135 V = 110 / 115 / 120 V Betrieb, 190 – 265 V = 220 / 230 / 240 V Betrieb, 50/60 Hz
Powerconnector
1 x 16 A Neutrik PowerCon IN
Signal connection analog INPUT/LINK
2 x XLR female/male
Speaker Connections
2 x Speakon
Network connection
1 x Additional rear RJ45 socket for wired network in fixed installations
Cooling
2 x temperature-controlled EBM-Papst low noise axial fan, air flow front to back
Protection
Input limiter, peak limiter
Start-up current limiting (soft start)
Protection circuit on and off transients
Under and over-voltage protection
DC-protection of outputs
Temperature monitoring of the heatsink and transistors
Realtime software-monitoring
Loudspeaker impedance measuring from each output channel (line-control)
Temperature measuring from each ampmodule
Real time meterbridge on PC per channel
Real time access for configuration on each channel
Speaker group building for access multiple speakers with one command
DSP sampling
64 bit, 96 kHz sample rate
DSP preset memory quantity
80 preset locations
Latency
0 – max. 500 microsecond
Dynamic range input
120 db
Nominal input level
+ 6 dbu
Maximum input level
+ 23 dbu
Limiter
Two per way, in each input and output
Filter
10 parametric filter each in- and output, use as Bell, Shelving, Notch, or Allpass filter
Long delay section
0 – 800 ms (max. 275 m delay) in each input
Short delay section
0 up to 17 ms (max. 6 m delay) per output for time alignment between the acoustic centers
Phase adjustment
0 – 180°
X-Over
Butterworth, Bessel, Linkwitz-Riley Filter
Software
Bi-directional realtime VA-WLAN-remote network, software for PC and MAC
Manual hand operation
with 2 x button and 1 x digital encoder-wheel in the internal menu navigation, function lockable
Display
1 x LED display
1 x LCD display with software dimmable and switchable
Body housing
19″/2 HE, 430 mm deep, strong black colored aluminum housing
Weight
4,1 kg
Score-5
Speaker drivers
2 x 5″ Neodym woofer (LF) with 32 mm (1,25″) voice coil
1 x 1″ Ferrit compression driver (HF) with 1″ voice coil
System
2-way, d’Appolito multi-functional loudspeaker, bass reflex
Frequency range
71 Hz – 19 kHz (- 10 dB)
139 Hz – 15,7 kHz (+/- 3 dB)
Coverage range (h x v)
70° x 55°
Monitoring angle
55° and 25°, 90° for Nearfill
Impedance
12 Ω
Powerhandling 12 Ω
200 W AES / 400 W programm / 800 W peak
Sensitivity dB SPL 1 W/1 m
92 dB SPL
Sound pressure at (AES / programm / peak)
114 dB SPL / 117 dB SPL / 120 dB SPL
Connectors
2 x Neutrik NL4 Speakon IN/OUT (loop through), configuration: 1+/1-
Handles
1 x handle backside
Mounting
1 x Camlock for tilt and swivel multifunctional brackets. Vertical and horizontally mountable without tools
1 x single-stud mount in the metal connection panel for safety rope (bracket can be secured separately)
2 x M6 threaded points for rear, adjustable wall brackets
1 x M8 Thread point for mounting a rear crosspiece clamp using the M8 cylinder head allen screw or for mounting a Manfrotte M8 stud for a Manfrotto Super Clamp
Housing
12 – 15 mm birch plywood CNC machine-splined and bolted
Finish
Water based textured black lacquer RAL 9005, 2 coats of varnish. Surface can be repaired and restored
As an Option, other surface colors according to RAL-tones can be provided in a matter of days.
Front grille
Galvanized and powdered black honeycomb grille RAL 9005, 5 mm acoustic foam behind grille.
RAL-tones are available as an option to the standard color as well as chrome, and, with or without foam.
Dimensions / Weight
450,5 (h) x 172 (w) x 190 mm (d) / 6 kg
Paveosub-112
Speaker drivers
1 x 12″ Neodym long excursion woofer (LF) with 4″ voice coil, cone waterproof treatment
System
compact and flat bass reflex subwoofer
Lower cut-off frequency
35 Hz (- 10 dB)
41 Hz (- 3 dB)
Coverage range (h x v)
Omnidirectional
Impedance
8 Ω active separated
Powerhandling LF 8 Ω
1.000 W AES, 2.000 W programm, 4.000 W peak
Sensitivity dB SPL 1 W/1 m
96 dB SPL (half space)
Sound pressure at (AES / programm / peak)
126 dB SPL / 129 dB SPL / 132 dB SPL
Connectors
2 x Neutrik NL4 Speakon IN/OUT, 2+/- LF
Handles
2 x shell type handle
Foot
8, each 4 x on a flat and narrow side with opposite stacking trays
Fittings
2 x M20 pole mount
2 x latches on the front for detachable wheelboard
Housing
30 and 15 mm birch plywood CNC machine-splined and bolted
Finish
Water based textured black lacquer RAL 9005, 2 coats of varnish. Surface can be repaired and restored
As an Option, other surface colors according to RAL-tones can be provided in a matter of days
Front grille
Galvanized and powdered black honeycomb grille RAL 9005, 10 mm acoustic foam behind grille, front logo
RAL-tones are available as an option to the standard color as well as chrome, and, with or without foam
For ‘No-branding’ installations, the logo on the front grille can be removed without leaving any visible marks
Dimensions / Weight
300 (h) x 520 (w) x 485 mm (d) / 23,1 kg
Info

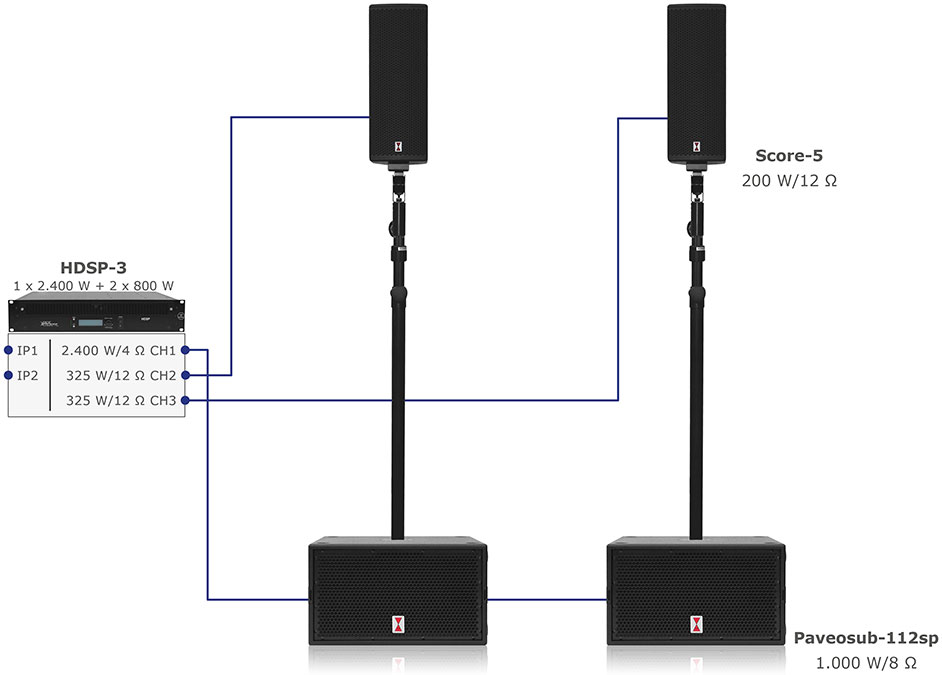

The HDSP-3 system power amplifier is the heart of the Score-5 Plug & Play Satellite System. The system is ‘Plug and Play’. Plug it in, and it is ready for use. All components are matched, adjusted and limited via the integrated speaker management system (DSP). The sound is synchronised right away, without having to make further adjustments.
Experienced technicians and professional audio operator can still alter the functions and have access capabilities to the DSP settings. Access to almost all parameters without PC control can be made using the Display buttons and encoder wheel. The functions can be password protected obviating unauthorized interference. Complex configurations can be comfortably created via the Ethernet, or USB interface on the PC surface, using the VA-Remotecontrol software for PC and Mac. Individual sound ideas and alterations can be saved as presets and recalled at any time.
The possibility of splitting, extension, scaling, ease of use and comprehensive, well thought out accessories complete the Score-5 Set and make it a universal PA tool with a very wide range of applications.
